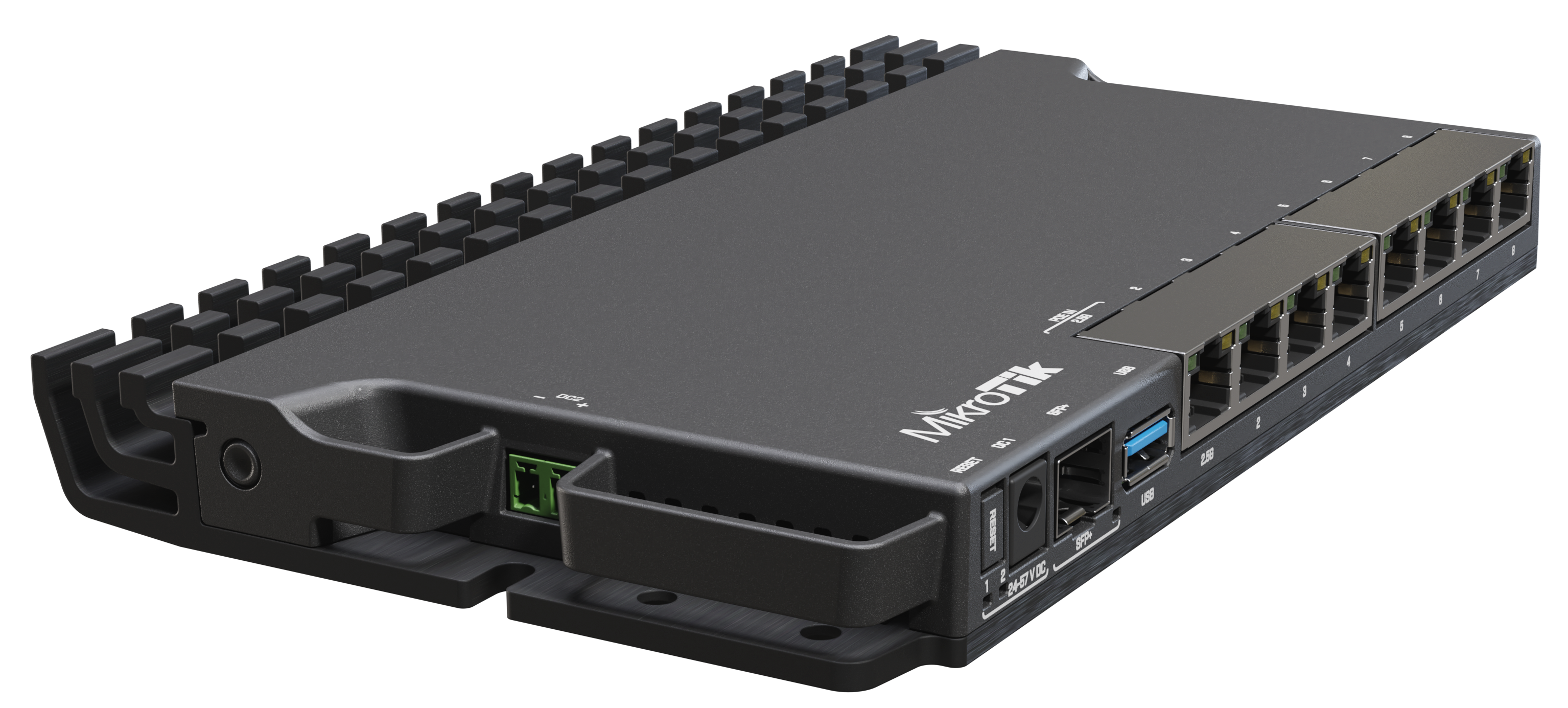

Mikrotik RB5009UG
Double the usual performance: we took your feedback from the MikroTik User Meetings to create the perfect home lab router: compact, powerful, with multiple powering options and efficient cooling.RB5009 has it all, and even more!
The board features 9 wired ports and a full-sized USB 3.0. Seven of the ports are Gigabit Ethernet, another one is 2.5 Gigabit Ethernet, and the last one is a 10G SFP+ cage. All the ports are connected to a powerful Marvell Amethyst family switch-chip with a 10 Gbps full-duplex line leading to the Marvell Armada Quad-core ARMv8 1.4 GHz CPU. Both CPU and the switch-chip are located on the bottom of the board – so the case acts as a massive heat-sink!
Boards come with 1GB of DDR4 RAM and 1GB NAND storage. This combination of ports and components, compared to our other products in a similar form factor, provides almost double the performance in configurations with heavy CPU loads.
With a simple set of mounting accessories, you can mount FOUR of these routers in a single 1U rackmount space! No more server-room-Tetris, just pure productivity.
HARDWARE SPECIFICATIONS:
| tails | |
|---|---|
| Product code | RB5009UG+S+IN |
| Architecture | ARM 64bit |
| CPU | 88F7040 |
| CPU core count | 4 |
| CPU nominal frequency | 350-1400 (auto) MHz |
| RouterOS license | 5 |
| Operating System | RouterOS (v7 only) |
| Size of RAM | 1 GB |
| Storage size | 1 GB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 60°C |
Ethernet test results
| RB5009UG+S+IN | 88F7040 All port test (7.1beta6) | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 811.3 | 9852.5 | 2333.7 | 9558.9 | 5545.3 | 3016.7 |
| Bridging | 25 bridge filter rules | 811.3 | 9852.5 | 1526.7 | 6253.5 | 1488.2 | 809.6 |
| Routing | none (fast path) | 811.3 | 9852.5 | 2333.7 | 9558.9 | 4296 | 2337 |
| Routing | 25 simple queues | 811.3 | 9852.5 | 986.6 | 4041 | 1001.1 | 544.6 |
| Routing | 25 ip filter rules | 615.9 | 7479.1 | 624.3 | 2557.1 | 625.4 | 340.2 |
